Canary Deployment With Istio

Istio service mesh is great for many things ie. Security, Multicluster and hybrid deployment, Circuit breaking, rate limiting, retries, service-to-service authentication/authorization, cluster-wide mTLS, and many more. But this demo will focus on the Canary deployment with Kubernetes Gateway API and Istio.

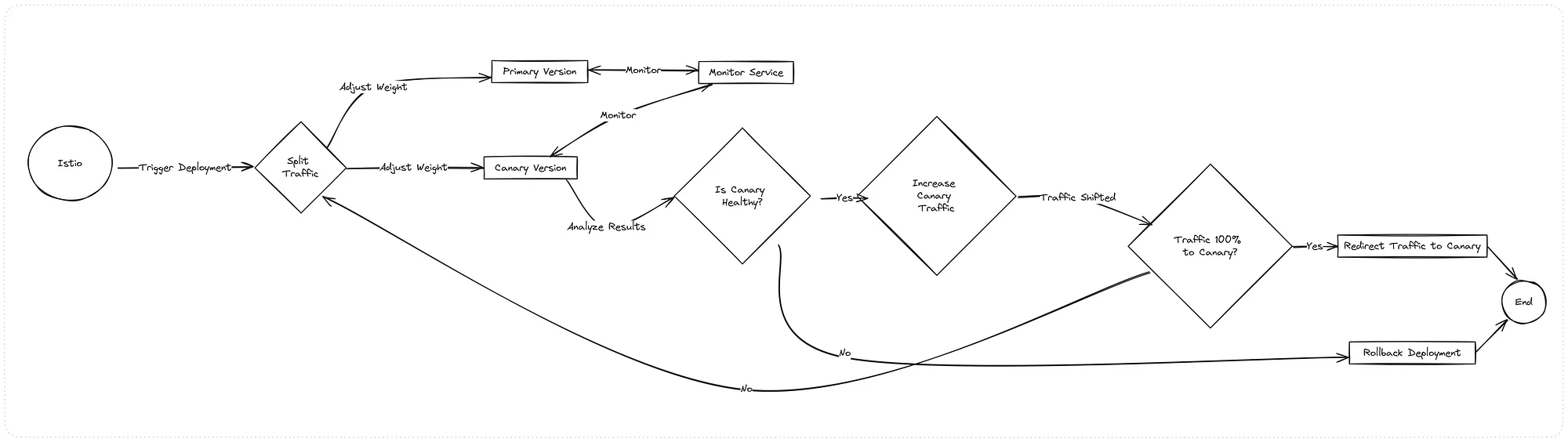

Canary Deployment Flow

Clone The Repo

GitHub - by-sabbir/canary-with-istio: Canary/ Blue-Green Deployment demo with Istio service mesh…

Canary/ Blue-Green Deployment demo with Istio service mesh for kubernetes - GitHub - by-sabbir/canary-with-istio…

github.com

Directory Structure

.
├── egcom                   # Helm Chart: full microservice stack
│   └── applications
│       ├── charts
│       └── templates
└── k8s-config              # Backing Services (Mongo ReplicaSet and RMQ)
│    ├── mongodb
│    └── rmq
├── kind-cluster.yaml       # Cluster config
└── metallb-conf.yaml       # BareMetal Load Balancer

System Architecture

The purpose of this demo is to simulate a simple e-commerce event-driven microservice architecture.

Press enter or click to view image in full size

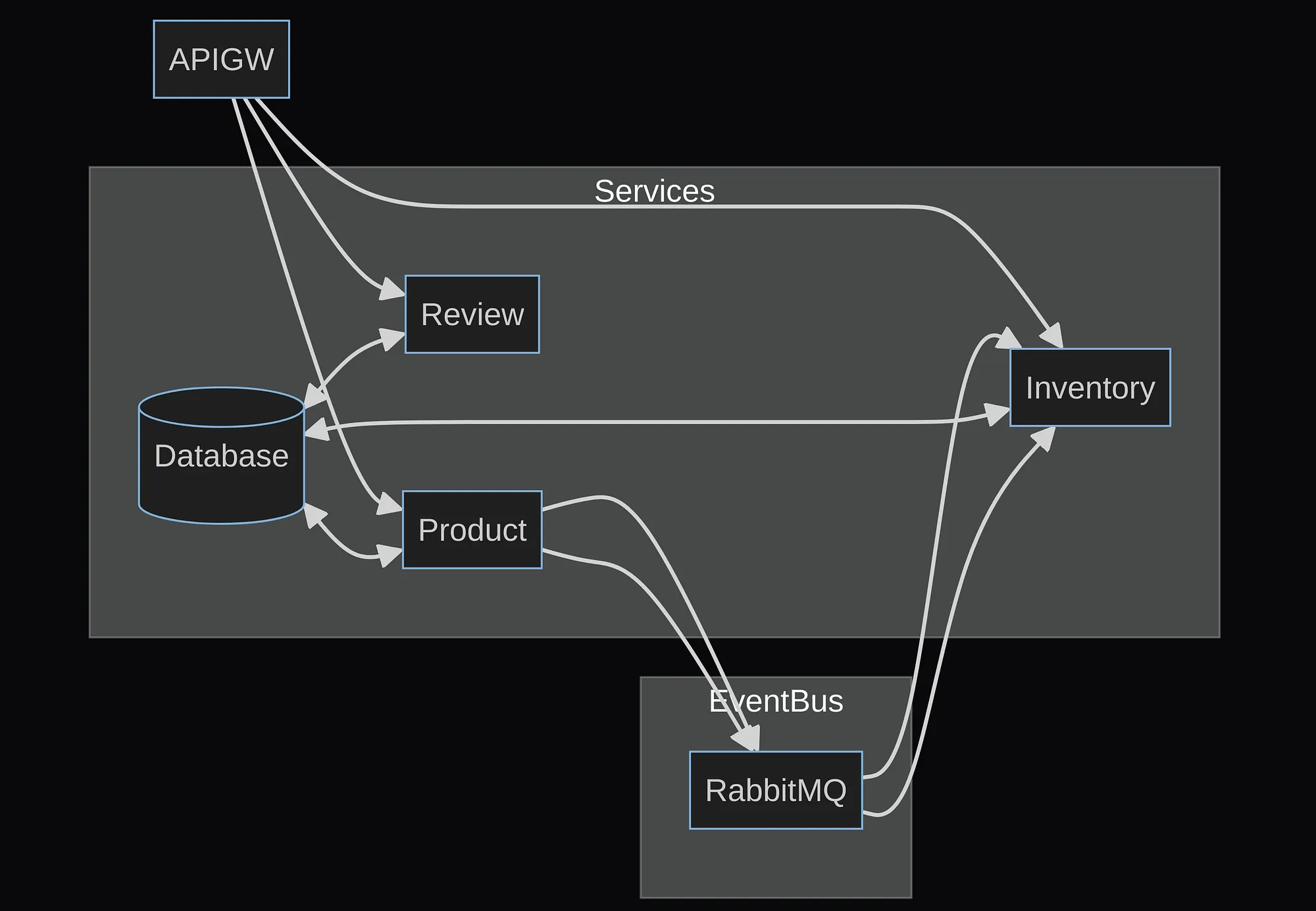

High-Level Diagram for the demo

Kind cluster initiation

If you don’t already have Kind installed, follow the link

kind create cluster --config=kind-cluster.yaml

This will create a kuberntes cluster with 1 control-plane and 2nodes

Install Istio Ingress Gateway CRD

kubectl get crd gateways.gateway.networking.k8s.io &> /dev/null || \
  { kubectl kustomize "github.com/kubernetes-sigs/gateway-api/config/crd?ref=v0.8.0" | kubectl apply -f -; }

Istio Initializing

curl -L https://istio.io/downloadIstio | sh -
# export the istio path
istioctl install --set profile=demo -y

Install and Configure MetalLB

kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.13.7/config/manifests/metallb-native.yaml

• Setup address pool for LB

docker network inspect -f '{{ (index .IPAM.Config 0).Gateway }}' kind

then configure metallb-conf.yaml accordingly and run k apply

Install RabbitMQ CRDs

kubectl apply -f "https://github.com/rabbitmq/cluster-operator/releases/latest/download/cluster-operator.yml"

Configure RMQ

Drop to RabbitMQ Pod shell and run

k exec -it rabbitmq-server-0 -- bash

rabbitmqctl add_user admin adminrabbitmqctl set_permissions --vhost / admin '.*' '.*' '.*'rabbitmqctl set_user_tags admin administrator

This will create an admin user Or get the default password from Cli

# Get Username
kubectl get secret rabbitmq-default-user -o jsonpath="{.data.username}" | base64 --decode
# Get Password
kubectl get secret rabbitmq-default-user -o jsonpath="{.data.password}" | base64 --decode

Install Mongo

k apply -f -r k8s-config/mongod

Configure Mongo ReplicaSet

• Drop to Mongo shell k exec -it mongo-0 -- mongosh

rs.initiate()
var cfg = rs.conf()

cfg.members[0].host="mongo-0.mongo.default.svc.cluster.local:27017"
rs.reconfig(cfg)
rs.add("mongo-1.mongo.default.svc.cluster.local:27017")
rs.add("mongo-2.mongo.default.svc.cluster.local:27017")

• Check the replication status rs.status()

Installing the application via helm

Update egcom/applications/templates/egcom-cm.yaml ConfigMap values with the MongoDB and RMQ creds.

k create ns egcom

k label namespace default istio-injection=enabledhelm install egcom ./applications -n egcom
